Analyzing ocean convection

Hello everyone,
I am Lukas from Potsdam Institute for Climate Impact Research and I am working with the CM 2.6 on PANGEO.
I was wondering wether there is a way (and I am sure there is) to visualize and to analyze the oceanic convection within in the model. Is there an explicit parameter to have a look on or should I need to think further?

I hope that this is the right place to come up with such questions and I am looking forward to discussing with you.

Best, Lukas

1 Like

Hi @lufiedl - welcome to the new forum! Thanks for asking your question here.

The easiest way to diagnose deep convection would be via the mixed-layer depth. Here is a mixed layer depth plot from argo


which clearly shows the signature of deep convection in the North Atlantic. Source notebook

Unfortunately, I don’t think that CM2.6 output mixed layer depth. It would be possible to re-calculate it form the 3D T and S data. However, that would be very expensive. We should first check to see whether the MLD is available somewhere. I’ll ping Steve Griffies on this.

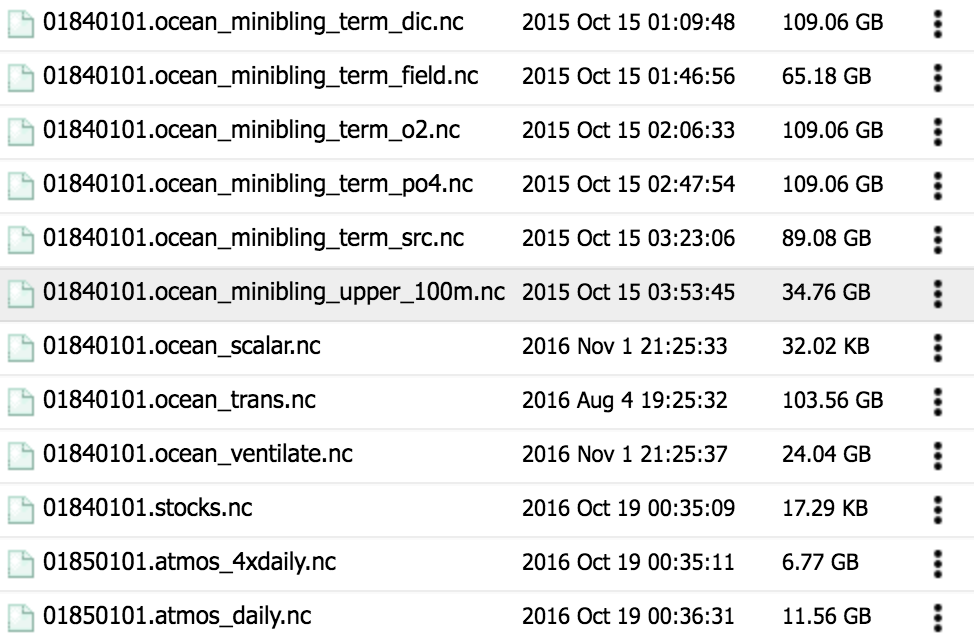

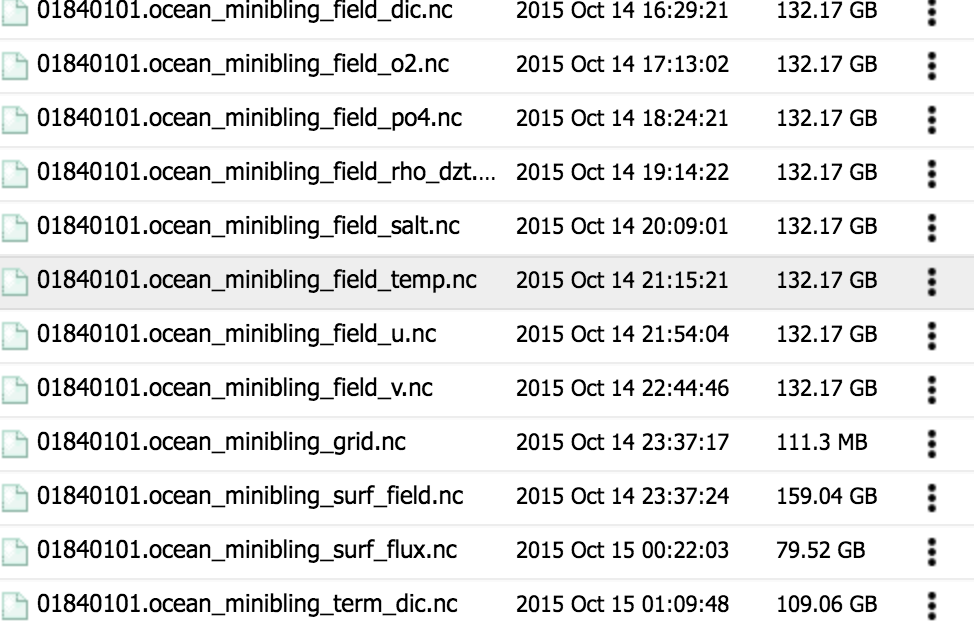

So I heard from Steve that they did output it. We just have to figure out what files it is in so we can load it into Google Cloud. The original files live in cyverse. Here is a screenshot of some of the names

It’s a bit inconvenient to download these huge files just to peek inside, so I’m hoping for some expert guidance.

Steve told me he was trying to register for the forum but had some problems.


I am now registered.

The fields are named “mld” for “mixed layer depth” (as per Levitus definition) and “hblt”, which is the KPP boundary layer thickness. Both are 2d fields, so much smaller than the 3d fields.

I do not see mld or hblt on the list Ryan gave. Perhaps we need to transfer them over to Pangeo…?

Or perhaps these fields are in Can you provide an ncdump -h for that file? Or perhaps it is in

I could check on the GFDL Archives, but the files are huge and migrated to tape, so presumably you can check quicker on Pangeo for the contents of these files…


The file list you see is from cyverse. My workflow for getting them “to Pangeo” is

  • Download them to a Columbia server using irods
  • Open with xarray.open_mfdataset
  • Export to zarr
  • Upload to google cloud storage

Right now it is unfortunately a rather manual process.

I will check on the suggested files and report back. It will take several hours to transfer the ~200 GB of netcdf files needed to do an ncdump. :unamused: This is why we like zarr and cloud-based storage. :grin:

Btw, I should have said, THANKS for taking the time to join the forum and share the information!

The MLD variables are in the files. These seem like important ones to have in Pangeo, so I will start the transfer process now.

Ah, I thought you already had them on Pangeo. Anyhow, glad you found mld. It is a nice field to have available on Pangeo. Thanks!

And I am happy to be part of this forum.

1 Like

Thank you so much for your effort @rabernat and @StephenGriffies . It’s good to hear, that the data fields for the MLD are available.
Once the files are uploaded, how can I find them in the data catalog?

Unfortuantely the download failed because I ran out of space on our server’s scratch disk. This is a rather frustrating problem! I will free up some space and keep trying.

Could you give me a short update on how the upload is progressing, @rabernat?

Hi @lufiedl–sorry for the delay! I’m working on it and hope to have a the data ready very soon.

1 Like

Thank you very much!

@lufiedl - just wanted to confirm that the data will finish downloading to my server tomorrow. Then it should be another day or two before they are on Google Cloud.

Sorry for the delays and thanks for your patience!

@lufiedl - you will be happy to know that the data are currently uploading to Google Cloud.

Just an interesting point I noticed when preparing this dataset. The total size of the netCDF files for the last 20 years of the simulation was 3.8 TB. The size of the exact same data in zarr format is 1.1 TB, without any loss of data.

1 Like

@lufiedl: The data are up!

Please let me know if you are able to find what you needed.

1 Like

Everything worked out extremely well! Again, thank you so much for you effort.So far I just had a quick look on one or two data points but I am looking forward to working with the sets in more detail the next weeks.

1 Like
